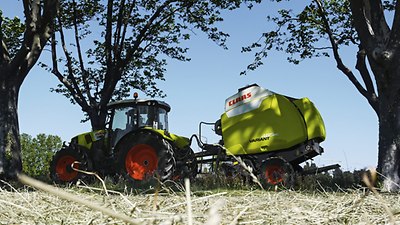

VARIANT 470 / 450

The entry-level model.

Every field is different, every day is different, and every harvest is different from the one before. That's no problem, because, with its high productivity and optimum convenience for the operator, the VARIANT is right at home in any field. Whatever the crop – hay, straw, silage or regenerating raw materials such as hemp – CLAAS has the right VARIANT for contractors and  machinery syndicates alike.

VARIANT 470 / 450

VARIANT 470 / 450

The entry-level model.

Every field is different, every day is different, and every harvest is different from the one before. That's no problem, because, with its high productivity and optimum convenience for the operator, the VARIANT is right at home in any field. Whatever the crop – hay, straw, silage or regenerating raw materials such as hemp – CLAAS has the right VARIANT for contractors and  machinery syndicates alike.

  1. Products
  2. Balers
  3. ...
  4. VARIANT 470 / 450

CLAAS Round balers | VARIANT 470 / 450.

VARIANT 470 / 450

The benefits for you.

  • ROTO FEED: Spiral rotor for smoother crop flow
  • Simple to operate with OPERATOR
  • The VARIANT 470 has just four belts, meaning reduced loss of feed
  • Suitable for dry material such as hay, straw and haylage
VARIANT 470 / 450
  1. 2.10-m pick-up
  2. Roller crop press
  3. Double-roller crop press
  4. Oscillating or folding oscillating castor guide wheels
  5. Only from CLAAS: Active high-power rotor with forced bale start

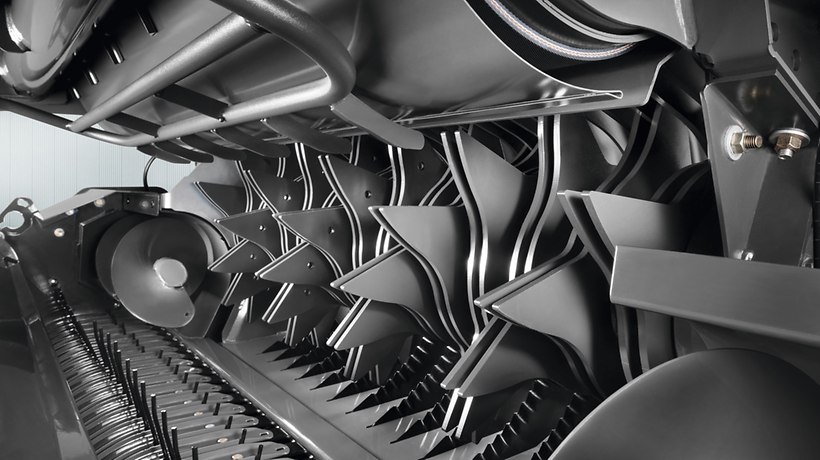

  6. ROTO FEED: Spiral rotor for uniform crop flow
  7. High drive torque with a belt speed of approx. 3 m/s
  8. Four reliable, high-strength endless belts
  1. Covered Edge plus net wrapping system
  2. New guiding plate for twine tying and net wrapping
  3. Bale density control system with active hydraulics and dual-tensioning arm
  4. Bale size and soft core diameter can be controlled from the cab
  5. Bale pressure and soft core pressure can be controlled from the cab
  6. COMMUNICATOR II / OPERATOR / EASY on board ISOBUS technology / S10 Terminal
  7. 6.30 l lubricant capacity

SpecificationsVARIANT 470VARIANT 450
Pick-up widthm2.102.10
Crop feedROTO FEEDROTO FEED
High-strength endless belts44
Soft-core device, pressure and diameter adjustable●●
Diameterm0.90–1.800.90–1.55
Control terminal
OPERATOR●●
COMMUNICATOR II○○
ISOBUS cables○○

● Standard ○ Optional

VARIANT 470 / 450

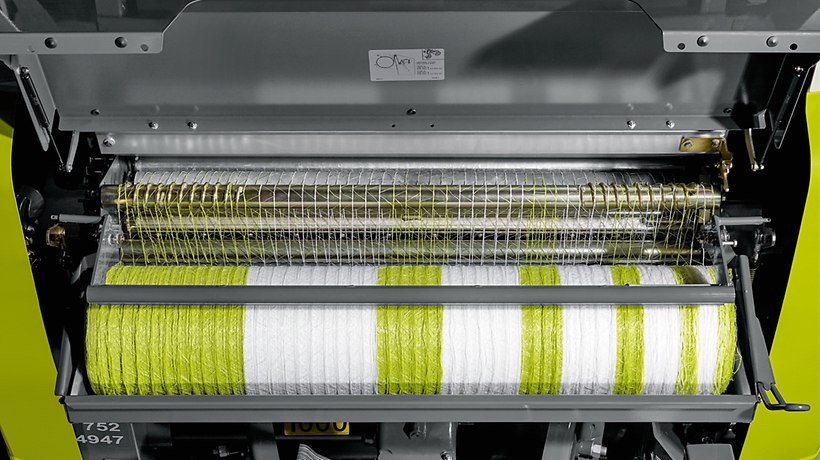

Patented wrapping system.

The completely reworked guiding plate provides even more reliable bale wrapping. The plate is open during baling, then closes during wrapping. It all adds up to an extremely reliable wrapping system.

VARIANT 470 / 450

Extra wide wrapping.

The patented CLAAS COVERED wrapping system provides bale coverage right up to the edge, and the CLAAS COVERED XW system even a few centimetres around it – for a neat, professional-looking end result.

VARIANT 470 / 450

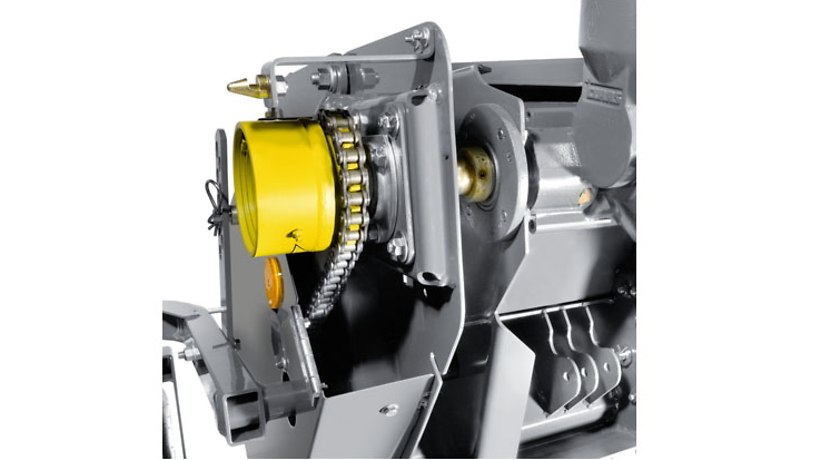

Pick-up clutch.

As in the QUADRANT, the shear bolt has been replaced by a pick-up coupling as standard in all pick-ups with roller crop presses. This allows you to utilise the full power and speed of your press without risking possible shear bolt breakage.

VARIANT 470 / 450

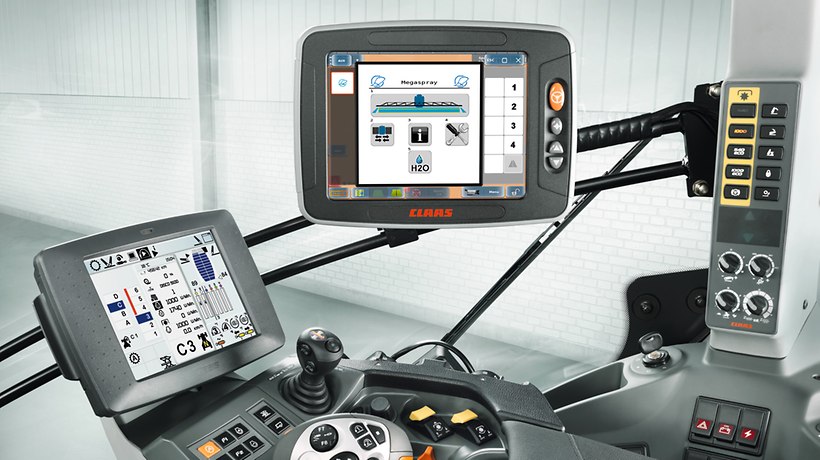

Choice of four different operating terminals.

The machine can be fitted with four different operating systems: OPERATOR, COMMUNICATOR II, S10 steering system and, of course, EASY on board.
