MARKANT 650.
![MARKANT 650 MARKANT 650](/blueprint/servlet/resource/image/1996902/inline_l_l/820/460/c949bf57f0dc08ef25ac4ac01f4f1538/fO/254224_1.jpg)
- Extended drawbar with dual drive shaft
- Slip clutch and shear bolt to protect baler
- Pick-up width: 1.85 m (DIN width 1.75)
- Pick-up height adjustment via control cable from the tractor cab (hydraulic optional)
- Tidy crop uptake with stronger pick-up, exactly the same as in the QUADRANT design
- Two strengthened dual crank feeders
- Power-saving pull cut, with flat rams for better bale shape
- High baling density with heavy, robust rams and bale chamber
- High performance with new linkage geometry
- Shaft drive for feeders, knotters and needle, with capacity for ten reels
- Reliable all-twine knotter
- Integrated maize kit as standard
- Specifications.
MARKANT 650 Pick-up width m 1.85 DIN width m 1.75 Crop feed Crank feeder conveyor Ram strokes rpm 93w Bale chamber dimension
Length x width x height
m 1.10 x 0.46 x 0.36 Bale length m 0.40 – 1.10 Recommended power requirement kW (hp) 44 (60) Number of knotters 2 Number of twine reels in the twine box 10 Tyres Left 11.5/80-15.3 6 PR Right 10.0/80-12 4 PR Dimensions Length mm 5490 Width mm 2735 Height mm 1880 Track width mm 2440
PU options Hydraulic / hydraulic ○ Drawbar / guidewheel ○ Weight Tare weight kg 1600
![MARKANT 650 MARKANT 650](/blueprint/servlet/resource/image/1996904/inline_l_l/820/460/1b16c1d70d6ce35996919a3985f55356/Ik/254228.jpg)

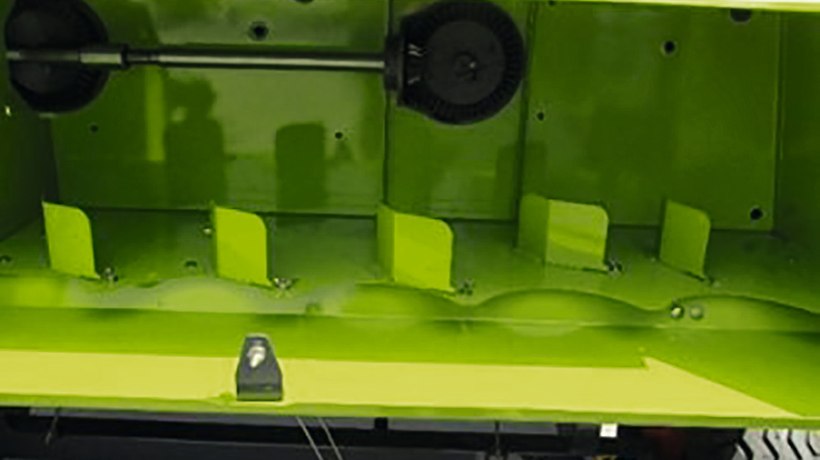

Twine box.
- New twine box with capacity for ten reels
- Better access to the ten reels
![MARKANT 650 MARKANT 650](/blueprint/servlet/resource/image/1996906/inline_l_l/820/460/2e446a639b3a430288385cef50040868/iv/328346.jpg)

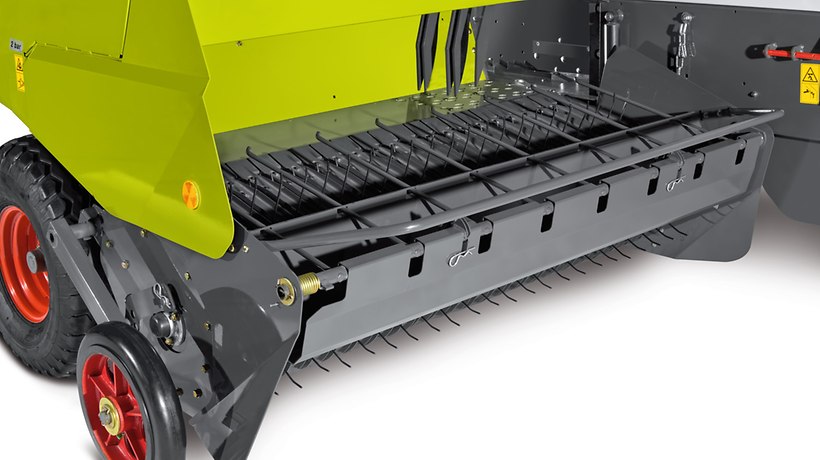

Strengthened pick-up.
- NEW: strengthened pick-up, for working in any conditions
- QUADRANT concept for MARKANT balers
- Controlled pick-up for longer service life
![MARKANT 650 MARKANT 650](/blueprint/servlet/resource/image/1996898/inline_l_l/820/460/a3b272f1e2398f657d4d262aec141224/nS/254224.jpg)

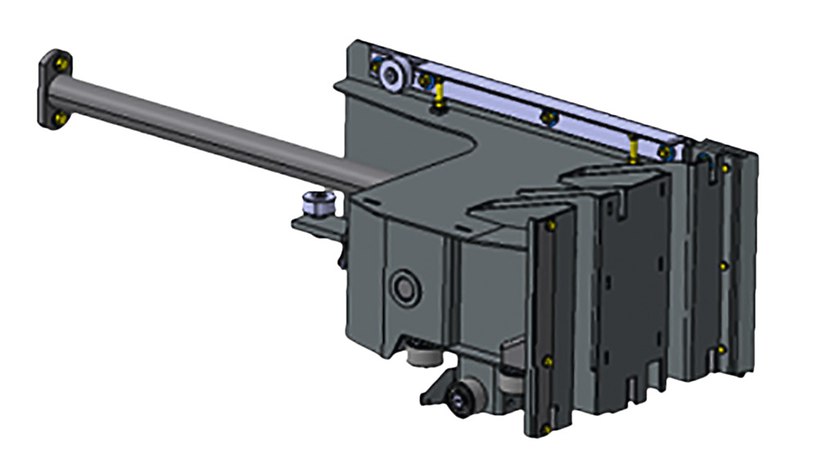

Improved bale shape.
- New ram shape for firmer bales
- New linkage geometry for better bale appearance
![MARKANT 650 MARKANT 650](/blueprint/servlet/resource/image/1996908/inline_l_l/820/460/deb79c8a671b668828b6ae553e168643/wB/328358.jpg)

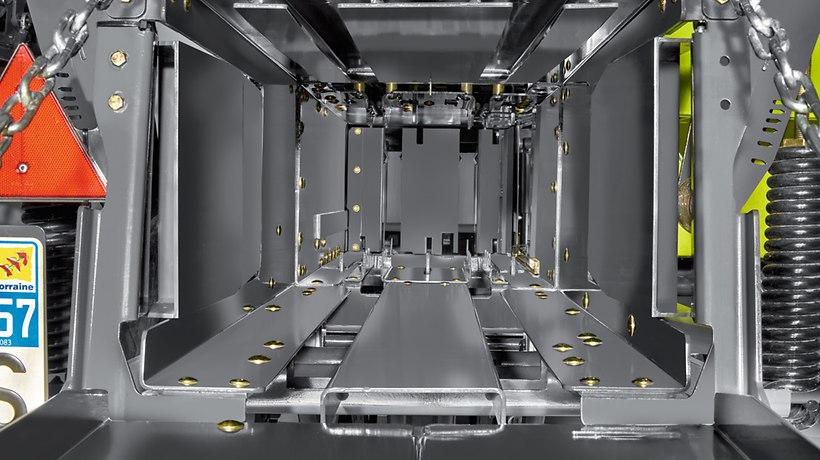

High compaction.
- The new bale chamber shape enables the MARKANT to produce heavier bales
- More kilos per bale mean more tonnes per truck, for lower transport costs
