QUADRANT 4000

Forward-thinking.

Wilted silage, straw and hay are shaped precisely, with maximum bale density. Both the bale density and bale length can be adjusted as required.

QUADRANT 4000

Forward-thinking.

Wilted silage, straw and hay are shaped precisely, with maximum bale density. Both the bale density and bale length can be adjusted as required.

CLAAS square balers | QUADRANT 4000 – the benefits for you.

  • With its well-engineered packer tine technology, the QUADRANT 4000 bales forage that is ideal for ruminants, and especially suitable for horses.
  • And most importantly, the feed rake system does not damage the stalks, enabling the QUADRANT 4000 to produce dust-free bales.
  • The 80 x 50-cm bale format also facilitates easy bale handling in barn and stable environments.

Bales of the highest quality.

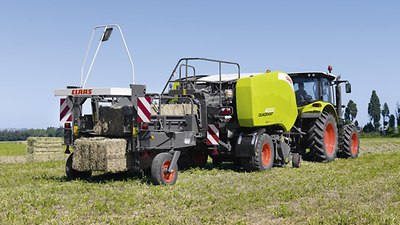

The QUADRANT 4000, with bale measurements 0.8 x 0.5 m, is a high-end machine that is synonymous with top-quality forage. The feed rake system makes it ideally suited for hay and alfalfa in particular. With the optionally available DUO PAC, two bales can be stacked vertically, saving valuable time when it comes to gathering, loading and transporting the bales.

QUADRANT 4000
  1. Central lubrication
  2. Four single knotters with reliable knotter cleaning
  3. Packer tine clutch with 4,300 Nm
  4. 5-tine packer for maximum performance and ideal forage protection
  5. Pick-up with working width of 2.0 m
  1. Protection system between ram and needle
  2. 122 packer tine strokes/min with 61 ram strokes/min for high performance
  3. Maintenance-free, 2-phase CLAAS-style feed raking
  4. Pivoting twine boxes for easier access
  5. DUO PAC bale accumulator
QUADRANT 4000

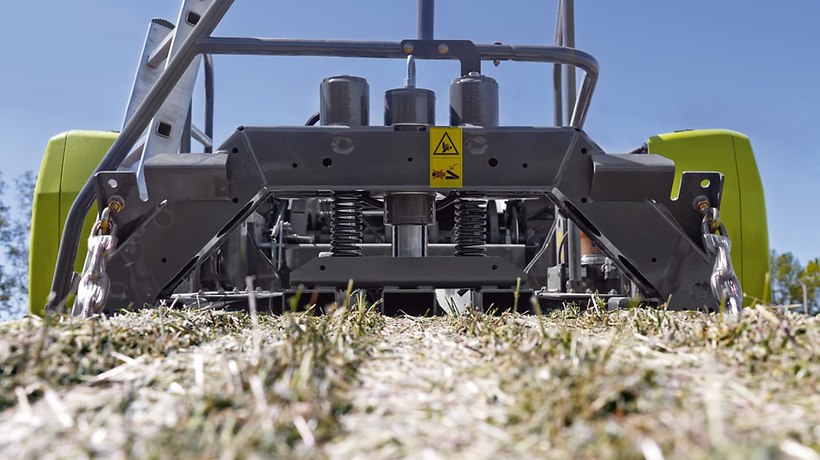

QUADRANT 4000 high-density bale chamber.

The high-density bale chamber delivers outstanding bale density under all conditions, achieving up to 15% higher weight per bale.

QUADRANT 4000

Interactive connection.

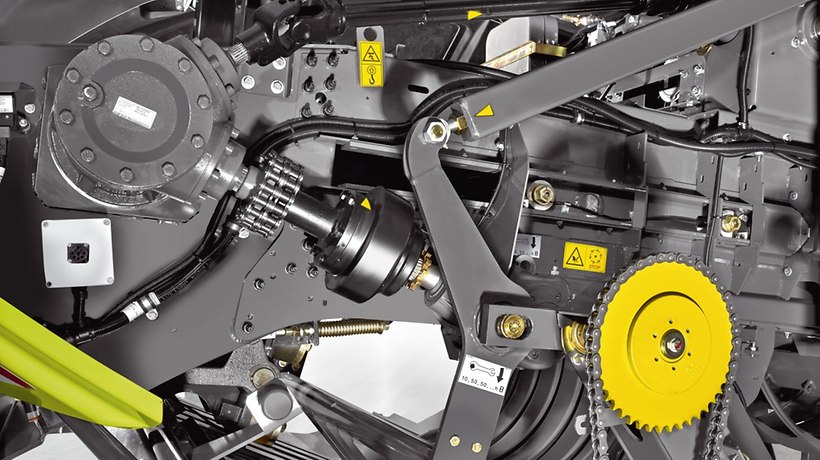

The cam-type power interrupt clutch on the feed rake prevents the machine from being brought to a standstill by a blockage. When it engages on encountering a blockage at the feed rake, the pick-up shuts down via the feed rake transmission. The driver receives a signal via the CLAAS OPERATOR, reduces engine speed, and can then get back to work without having to leave the cab.

QUADRANT 4000

OPERATOR.

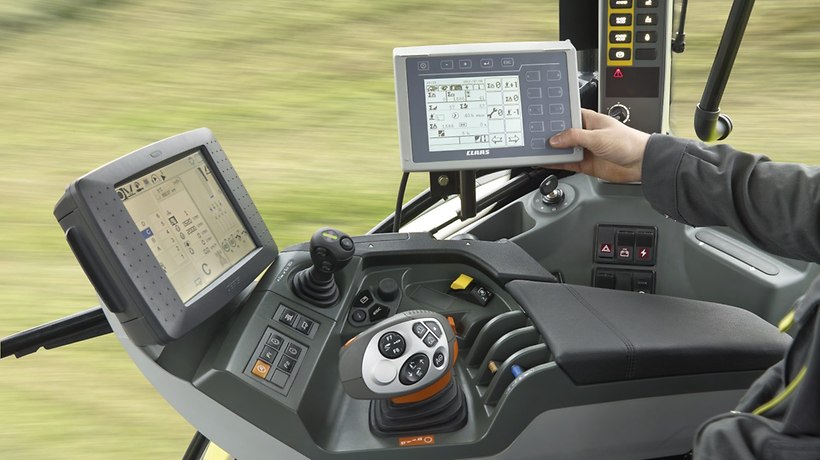

Using the OPERATOR terminal, fitted as standard on all QUADRANT 4000 models, all essential settings can be controlled direct from the cab.

QUADRANT 4000

Packer tine system.

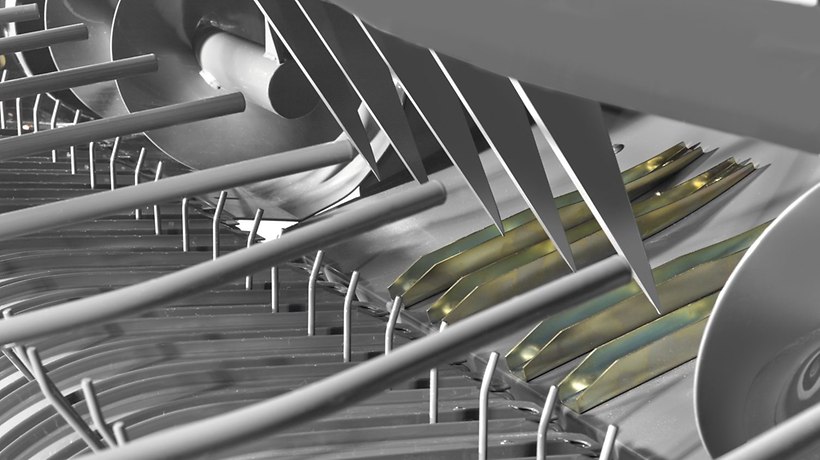

The intelligent tined feed rack system ensures consistently high forage crop quality, and protects the material, particularly hay and alfalfa.

  • Crop feed
    QUADRANT 4000
    Pick-up widthm2.00
    Crop feedFeed rake

  • Baling channel | Tying
    QUADRANT 4000
    Ram strokesrpm61

    Bale chamber dimensions

    Length x width x height

    m2.57 x 0.80 x 0.50
    Bale lengthm0.70–2.40
    Number of knotters4
    Number of twine reels in the twine box16, 11.50 kg each

  • Control terminal
    QUADRANT 4000
    Control terminalOPERATOR

  • Axle | Tyres
    QUADRANT 4000
    Single axle500/55-20 12 PR
